Fakra Cable: Pioneer Cable for RF Connection

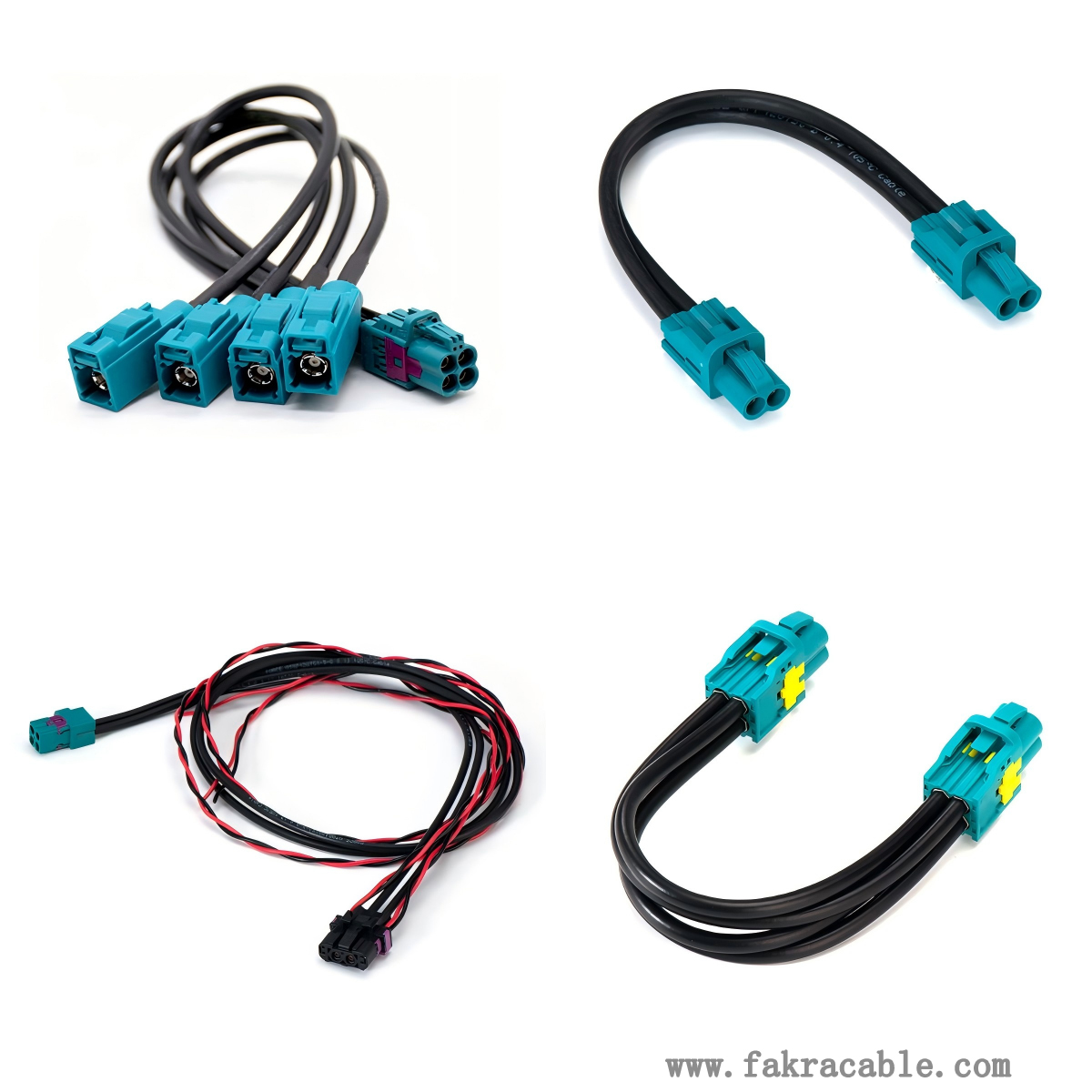

In the field of modern communication and electronic devices, the efficiency and stability of signal transmission are crucial, and Fakra cables have emerged in this context, becoming a leader in the field of RF connections. Fakra cable was originally developed by the German company Rosenberger and is a compact, high-performance RF coaxial cable specifically designed for applications such as automobiles and mobile devices.

The structural design of Fakra cables is exquisite and unique. It mainly consists of a central conductor, insulation layer, shielding layer, and outer sheath. The central conductor is usually made of high-purity copper material to ensure good conductivity and efficient signal transmission. The insulation layer is made of materials with low loss and high dielectric constant, such as polyethylene (PE) or polytetrafluoroethylene (PTFE), which effectively isolates the central conductor from external interference and reduces signal attenuation. The shielding layer is generally composed of metal woven mesh and aluminum foil composite, which can provide excellent electromagnetic shielding effect, prevent external electromagnetic interference from entering the interior of the cable, and also prevent the leakage of signals inside the cable, further improving the stability of signal transmission. The outer sheath is made of wear-resistant and weather resistant materials to protect the cable from physical damage and environmental erosion, ensuring reliable operation under various complex conditions.

Fakra cables have many significant performance characteristics. Its excellent RF performance enables it to perform well in high-frequency signal transmission, maintaining extremely low signal loss in the GHz frequency range. For example, in the 2-6GHz frequency band, signal attenuation is minimal, making it very suitable for applications such as 5G communication, satellite navigation, digital TV, which require strict high-frequency signal transmission. At the same time, Fakra cables have good mechanical properties, with small size and light weight, making it easy to route and install inside devices with limited space. Moreover, its connector can be plugged and unplugged hundreds of times, ensuring a secure and reliable connection, effectively reducing the risk of signal interruption caused by loose connections.

In terms of application fields, Fakra cables have a wide range of applications. In the automotive industry, it is an indispensable part of in car communication and entertainment systems. Fakra cables are responsible for signal transmission, from receiving satellite signals from GPS navigation systems in cars, to implementing wireless communication in cars through Bluetooth and Wi Fi modules, and even receiving high-definition program signals from digital TVs. In the field of mobile devices, such as smartphones, tablets, etc., Fakra cables are used to connect antennas and motherboards, ensuring that devices can stably receive and transmit signals even when in motion. In some industrial automation equipment, Fakra cables are also used for the transmission of RF signals, providing support for precise control and efficient operation of the equipment.

Compared to other common RF cables, Fakra cables have unique advantages in size and performance. For example, compared to traditional SMA cables, Fakra cables are smaller and lighter, making them more suitable for use in miniaturized devices. Although SMA cables also perform well in high-frequency performance, Fakra cables have advantages in applications that require extremely strict space requirements. Compared with ordinary coaxial cables, Fakra cables have better electromagnetic shielding performance, lower signal transmission loss, and can meet the application requirements of higher signal quality.

Fakra cables occupy an important position in the field of RF connections due to their unique structural design, excellent performance characteristics, and wide application areas. With the continuous development of communication technology and electronic devices, the performance requirements for Fakra cables will continue to increase, and it will also continue to innovate and evolve in future technological development, providing strong support for technological breakthroughs in more fields.
